Switchover system PNEUMAT 1

pneumatic system up to 15 Nm³/h and 30 Nm³/h

Switchover system PNEUMAT 1 – central supply panel ensures a continuous supply of medical gases

Switchover system PNEUMAT 1 - basic information

PNEUMAT central supply panel ensures a continuous supply of medical gases (oxygen, nitrous oxide, compressed air, carbon dioxide and other compressed medical gases). According to EN ISO 7396-1:2016 standard, the system is designed for two banks of cylinders + optional third reserve bank.

It consists of:

  • PNEUMAT 1 central supply panel,

Pneumatic switching system controls and monitors the supply of gas to the distribution system, while reducing the pressure of cylinder batteries.

  • Dimensions of PNEUMAT panel: 850 x 450 x 150 mm (HxWxD)
  • Weight: ~15 kg
  • Capacity: 15-30 Nm³/h
  • Inlet: G1/2”
  • Inlet pressure: max. 200 bar
  • Outlet pressure: 4 – 5.5 bar
  • Outlet: copper pipe Ø 15 mm
  • Relief valves: copper pipe Ø 12 mm
  • Power supply: 12 V DC, 0.2A
  • Cross-section of the power cord: 2 x 0.75 mm2

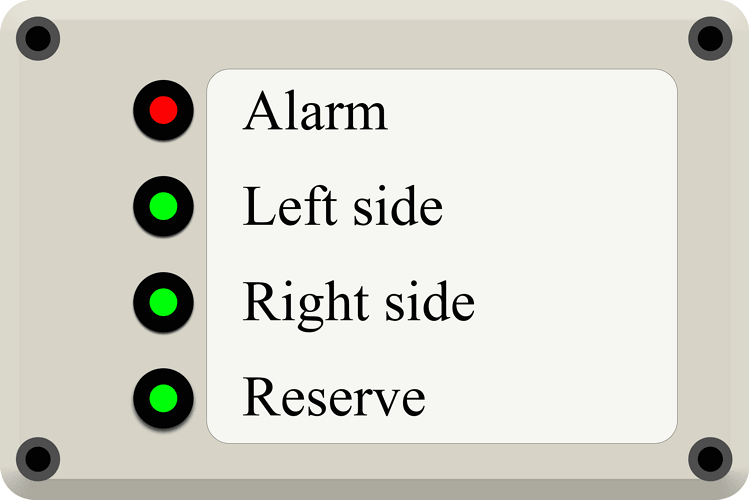

  • Cord to remote alarm unit (optional): 4-pair UTP or FTP wire coil

Gases types

  • 2 cylinder banks
  • 2 cylinder banks + reserve bank
  1. For reserve source please go to information single stage and double stage reserve panels
  2. for high pressure connections please check high pressure headers section
